Agent System

Overview

The Agentic AI framework utilizes a flexible agent system centered around a Coordinator agent. This system is designed to analyze incoming user requests, determine the appropriate course of action, and delegate tasks to specialized agents. All agents inherit common functionality from a BaseAgent class and are managed through an AgentRegistry and instantiated by an AgentFactory.

Core Components

• BaseAgent (src/agents/base_agent.py):

• The foundation for all agents in the system.

• Provides common initialization logic, including loading agent-specific configuration from agents.yml via UnifiedConfig.
• Handles basic request processing, including applying model and system prompt overrides specified in the request.
• Includes a default can_handle() method (returning low confidence) that specialized agents should override.

• Provides basic response enrichment with agent ID and status.

• Coordinator (src/agents/coordinator.py):

• The central orchestrator of the agent system.

• Acts as the primary entry point for user requests directed at the agent layer.
• Uses RequestAnalyzer to classify the intent of the incoming request (e.g., META, IMAGE_GENERATION, AUDIO_TRANSCRIPTION, QUESTION, TASK).
• Routes requests based on the classified intent:
  • META: Handles directly by providing system information (agents, tools).
  • IMAGE_GENERATION: Handles directly by calling the generate_image tool via ToolManager.
  • AUDIO_TRANSCRIPTION: Delegates to a specialized agent (e.g., ListenerAgent).
  • QUESTION: Delegates simple queries to a configured default agent (e.g., ChatAgent).
  • TASK: Intended for complex requests potentially requiring multiple agents. The current implementation might delegate to a default handler or requires further development for multi-step/multi-agent planning and execution.
  • UNKNOWN: Falls back to the default handler agent.
• Utilizes AgentFactory to create instances of agents for delegation.
• May use ResponseAggregator (though TASK handling is currently simplified) to combine results from multiple agents if implemented.

• Checks delegated agent response metadata for tool_history and uses FrameworkMessageFormatter to present tool results/errors clearly.

• AgentFactory (src/agents/agent_factory.py):

• Responsible for creating instances of specific agent types.

• Uses AgentRegistry to know which agent classes correspond to agent IDs.

• Injects necessary dependencies like UnifiedConfig, ToolManager, and loggers into the created agent instances.

• AgentRegistry (src/agents/agent_registry.py):

• Maintains a mapping between agent IDs (strings used in configuration and code) and their corresponding agent classes.

• Allows for dynamic registration and discovery of available agents.
• Used by AgentFactory to find the correct class to instantiate.

• Note: agent_registrar.py might contain related or older registration logic.

• RequestAnalyzer (src/agents/request_analyzer.py):

• Analyzes incoming requests primarily using keyword/regex matching to determine user intent (META, IMAGE_GENERATION, AUDIO_TRANSCRIPTION, QUESTION, TASK, UNKNOWN).

• Does not currently use an LLM for this classification.

• Its classification directly informs the Coordinator's routing decisions, including whether to handle directly (META, IMAGE_GENERATION) or delegate.

• ResponseAggregator (src/agents/response_aggregator.py):

• Designed to combine responses from multiple agents (primarily for complex TASK requests).
• Takes the original request and a list of individual agent responses.
• Synthesizes a final, coherent response for the user.
• Its usage might be limited depending on the current implementation status of multi-agent TASK handling in the Coordinator.

Specialized Agents

These agents inherit from BaseAgent and perform specific functions:

• ListenerAgent (src/agents/listener_agent.py):

• Handles audio input, likely performing transcription using a specified speech-to-text model or service.

• Triggered by the Coordinator for requests identified as AUDIO_TRANSCRIPTION.

• ChatAgent (src/agents/chat_agent.py):

• A general-purpose agent for handling conversational queries or simple questions.

• Often configured as the default handler in the Coordinator for QUESTION intent or fallbacks.

• CodingAssistantAgent (src/agents/coding_assistant_agent.py):

• Specialized for code-related tasks (generation, explanation, debugging).

• Likely uses specific system prompts or configurations defined in agents.yml.

• ToolFinderAgent (src/agents/tool_finder_agent.py):

• Responsible for identifying the most relevant tools from the ToolManager to fulfill a user's request.

• May involve an LLM call analyzing the request against the descriptions of available tools.

• Other Potential Agents: The system may include other specialized agents not explicitly listed here (check src/agents and src/config/agents.yml).

Request Flow (Simplified)

1. User request (potentially initiated via UI or API) reaches the agent system.
2. The Coordinator receives the request.
3. Coordinator uses RequestAnalyzer to classify intent.
4. If META: Coordinator gathers info and responds directly.
5. If AUDIO: Coordinator uses AgentFactory to get ListenerAgent, delegates, and returns the response.
6. If QUESTION/UNKNOWN: Coordinator uses AgentFactory to get the default agent (e.g., ChatAgent), delegates, and returns the response.
7. If TASK: Coordinator (currently) might delegate to the default handler or execute more complex logic (potentially involving ToolFinderAgent, other specialized agents, and ResponseAggregator - requires verification of current implementation).
8. The chosen agent(s) process the request, potentially using their injected AIBase instance (LLM) and ToolManager.
9. The final response (potentially aggregated) is returned.

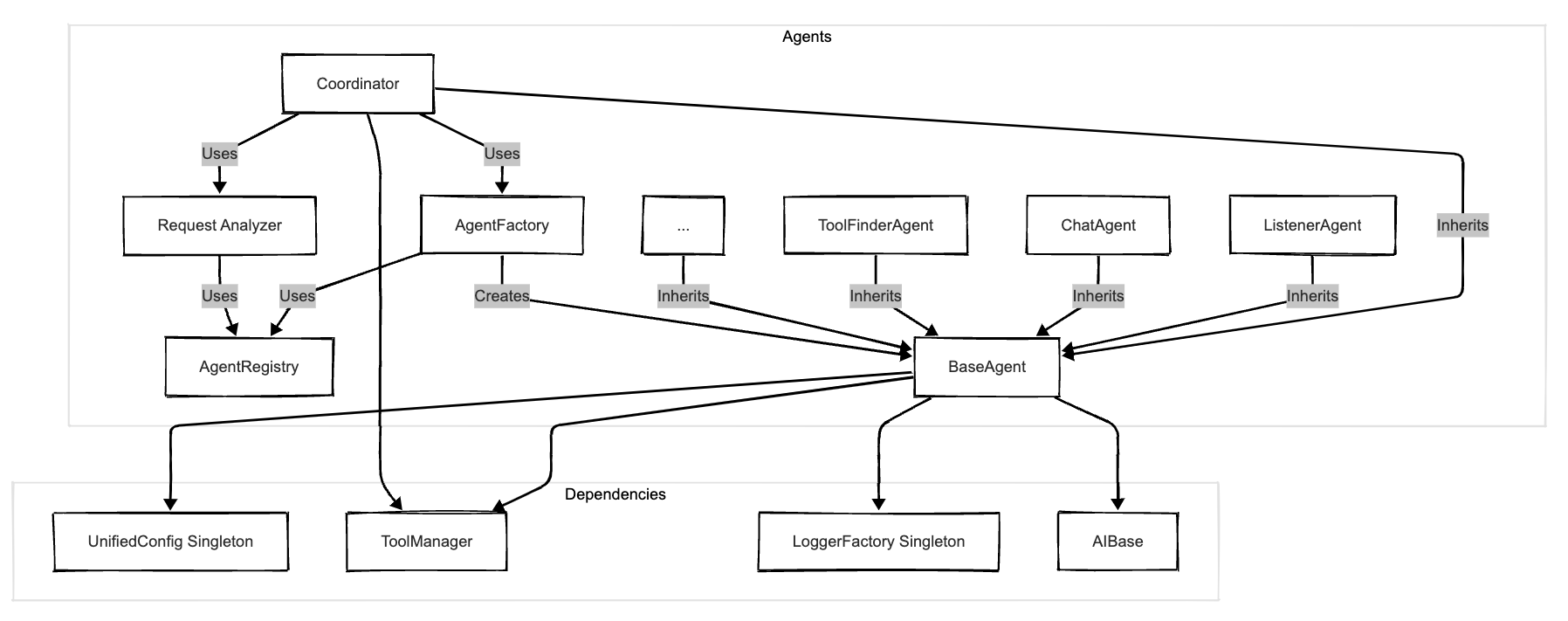

Architecture Diagram Prompt

sequenceDiagram
    actor User
    participant Coord as Coordinator Agent
    participant RA as Request Analyzer
    participant AF as Agent Factory
    participant AR as Agent Registry
    participant RAgg as Response Aggregator
    participant UC as UnifiedConfig
    participant LA as Listener Agent
    participant CA as Chat Agent
    participant CAA as Coding Assistant Agent
    participant TFA as Tool Finder Agent
    participant TM as Tool Manager
    participant AI as AIBase (LLM Interface)

    User->>Coord: Send Request
    Coord->>RA: Analyze Request
    RA->>AR: Query Available Agents
    AR-->>RA: Return Agent Classes
    RA-->>Coord: Return Intent

    Coord->>AF: Create Agent Based on Intent
    AF->>AR: Get Agent Class
    AR-->>AF: Return Agent Class
    AF->>UC: Get Configuration
    UC-->>AF: Return Configuration

    alt Listener Intent
        AF-->>LA: Instantiate
        LA->>AI: Process with LLM
        AI-->>LA: Return Results
        LA-->>Coord: Return Response
    else Coding Intent
        AF-->>CAA: Instantiate
        CAA->>AI: Process with LLM
        AI-->>CAA: Return Results
        CAA-->>Coord: Return Response
    else Tool Finding Intent
        AF-->>TFA: Instantiate
        TFA->>TM: Query Available Tools
        TM->>UC: Get Tool Configuration
        UC-->>TM: Return Tool Configuration
        TM-->>TFA: Return Available Tools
        TFA->>AI: Process with LLM
        AI-->>TFA: Return Results
        TFA-->>Coord: Return Response
    else Default Intent
        AF-->>CA: Instantiate
        CA->>AI: Process with LLM
        AI-->>CA: Return Results
        CA-->>Coord: Return Response
    end

    Coord->>RAgg: Aggregate Responses (for TASKS)
    RAgg-->>Coord: Return Aggregated Response

    Coord-->>User: Return Final Response

(Note: This diagram represents the logical flow and dependencies based on the code review. Dashed lines indicate inheritance or potential usage.)
