Agentic-AI Architecture

This document describes the architecture of the Agentic-AI framework, focusing on the core design principles and component relationships.

Overview

Agentic-AI is a modular framework for building AI applications with integrated tool usage and agent-based processing capabilities. The architecture emphasizes:

  • Separation of Concerns: Each component has a clear, focused responsibility (e.g., configuration, core AI logic, tool execution, agent coordination).
  • Interface-Based Design: Components interact through well-defined interfaces (AIInterface, ProviderInterface, AgentInterface, etc.) where applicable.
  • Configuration Management: A centralized UnifiedConfig system loads settings from modular YAML files, allowing overrides via code, files, or environment variables.
  • Dependency Injection/Access: Key services like configuration (UnifiedConfig), logging (LoggerFactory), and potentially ToolManager or PromptTemplate are often accessed via singletons or passed during initialization.
  • Standardized Error Handling: A hierarchy of exceptions (AIFrameworkError, AIConfigError, AIProviderError, etc.) and an ErrorHandler facilitate consistent error management.

Core Components

  • Configuration (src/config): Manages all settings.

  • UnifiedConfig: Singleton providing access to merged configuration from YAML files (models.yml, providers.yml, agents.yml, tools.yml, use_cases.yml) and overrides.

  • UserConfig: Represents user-provided overrides.

  • configure(): Function to apply user overrides.

  • Core AI (src/core): Handles direct interaction with LLMs.

  • AIBase: Foundational class managing provider selection (via ProviderFactory), basic request/response handling, and conversation history (ConversationManager).

  • ToolEnabledAI: Extends AIBase to manage the tool-calling loop, interacting with ToolManager and the provider. Retrieves raw tool execution history (get_tool_history).
  • ProviderFactory: Creates instances of specific provider clients.
  • providers/: Contains implementations for different AI providers (OpenAI, Anthropic, etc.), inheriting from BaseProvider and implementing ProviderInterface.
    • BaseProvider: Base class for providers, handling common logic like parameter processing and tool formatting via ProviderToolHandler.
    • ProviderToolHandler: Helper class within providers for formatting tool definitions and results.
    • FrameworkMessageFormatter: Utility class used by components like Coordinator to format internal framework events (tool results, errors) into user-readable strings.

  • ConversationManager: Tracks message history for AI interactions.

  • Tools (src/tools): Manages function/API calling capabilities.

  • ToolManager: Central service coordinating tool execution (execute_tool) using ToolExecutor and retrieving tool definitions from ToolRegistry. Does not handle tool finding.

  • ToolRegistry: Loads ToolDefinition objects from configuration, stores them, and provides them. Handles provider-specific formatting logic.
  • ToolExecutor: Executes the actual tool functions with timeout/retry logic.

  • models: Defines ToolDefinition, ToolCall, ToolResult.

  • Tools (src/tools): Manages function calling (internal tools) and external API interactions (MCP tools).

  • ToolManager: Central service coordinating tool discovery, formatting, and asynchronous execution (async def execute_tool). Loads definitions from ToolRegistry (internal) and MCPClientManager (MCP). Dispatches execution calls to ToolExecutor or MCPClientManager based on tool source.

  • ToolRegistry: Loads, validates, and stores internal tool definitions (source='internal') from tools.yml. Provides access to these definitions.
  • MCPClientManager: Loads MCP server configurations and declared MCP tool definitions (source='mcp') from mcp.yml. Manages ClientSession connections to external MCP servers and handles MCP call_tool requests.
  • ToolExecutor: Executes only internal Python tool functions (source='internal') with asyncio-based timeout/retry logic.
  • ToolStatsManager: Tracks usage statistics for all tools.

  • models: Defines ToolDefinition, ToolCall, ToolResult.

  • Agents (src/agents): Enables specialized processing and workflows.

  • Coordinator: Central agent orchestrating request handling.

    • Uses RequestAnalyzer to classify intent (e.g., META, TASK, IMAGE_GENERATION).
    • For specific intents like META or IMAGE_GENERATION, it may handle the request directly (e.g., fetching info or directly calling a tool via ToolManager).
    • For other intents (TASK, QUESTION, UNKNOWN), it typically delegates to specialized agents selected via AgentFactory.
    • Checks delegated agent response metadata for tool_history and uses FrameworkMessageFormatter to present results/errors.
  • BaseAgent: Abstract base class for all agents. If using ToolEnabledAI, calls process_prompt and attaches raw tool_history to response metadata.
  • AgentFactory: Creates agent instances using AgentRegistry.
  • AgentRegistry: Maps agent IDs to agent classes.

  • Specialized Agents (e.g., ListenerAgent, ChatAgent, ToolFinderAgent): Implement specific functionalities.

  • Prompts (src/prompts): Manages reusable prompt templates.

  • PromptTemplate: Service loading templates from YAML files, handling versioning and variable substitution.

  • Utilities (src/utils): Provides common functionalities.

  • LoggerFactory: Creates configured logger instances.

  • Error Handling (src/exceptions.py): Defines custom exceptions and the ErrorHandler.

  • UI (src/ui): Provides user interfaces.

  • SimpleChatUI: A Gradio-based chat interface interacting with the Coordinator.

Component Relationships Diagrams

These diagrams illustrate the key relationships and dependencies between the major components.

1. Configuration System

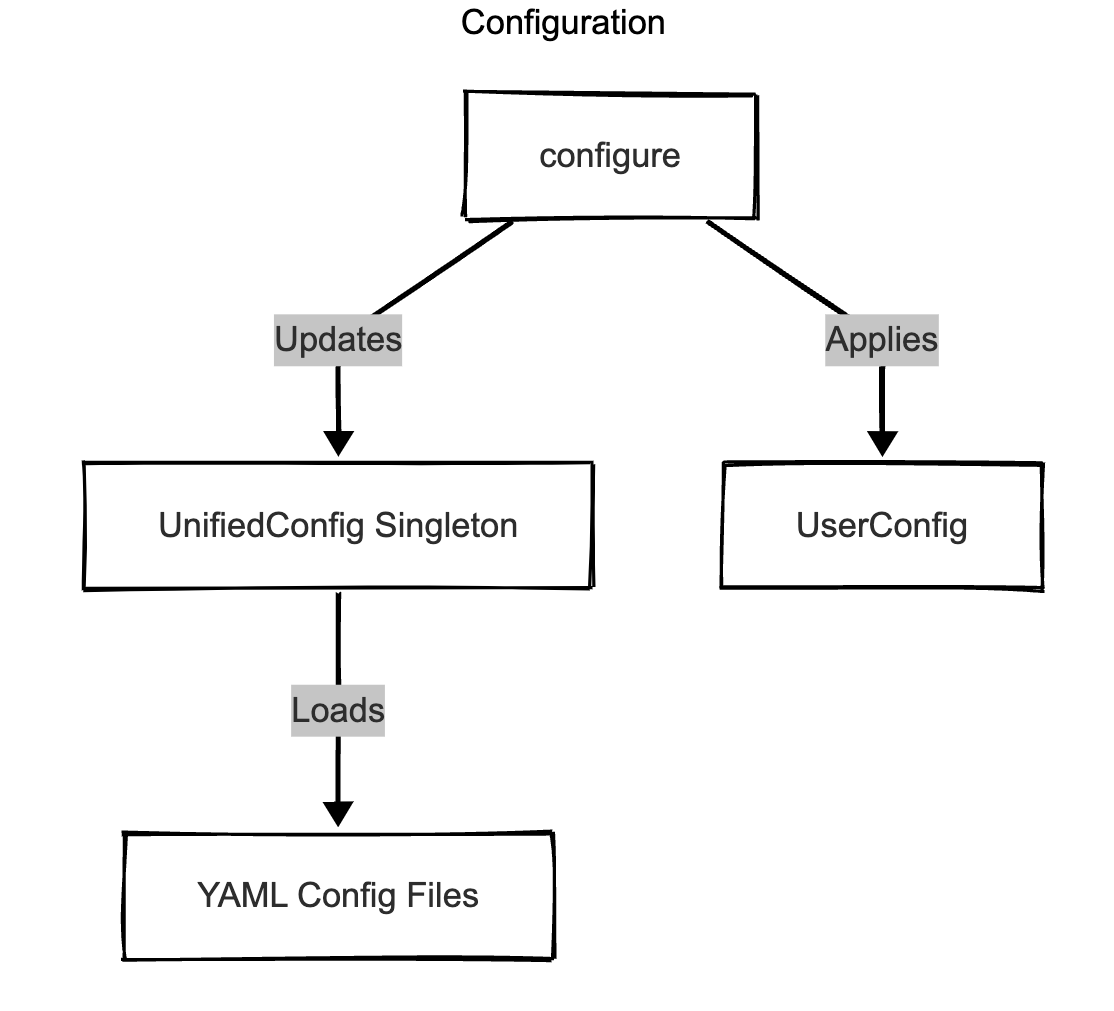

Configuration

graph TD
    subgraph Configuration
        UnifiedConfig[UnifiedConfig Singleton]
        YAMLFiles[YAML Config Files]
        ConfigureFunc["configure()"]
        UserConfig[UserConfig]
        UnifiedConfig -- Loads --> YAMLFiles
        ConfigureFunc -- Applies --> UserConfig
        ConfigureFunc -- Updates --> UnifiedConfig
    end

    subgraph Components Using Config
        AIBase
        ToolEnabledAI
        Coordinator
        ToolManager
        ProviderImplementations
        BaseAgent
    end

    AIBase --> UnifiedConfig
    ToolEnabledAI --> UnifiedConfig
    Coordinator --> UnifiedConfig
    ToolManager --> UnifiedConfig
    ProviderImplementations --> UnifiedConfig
    BaseAgent --> UnifiedConfig

2. Core AI System

graph TD
    subgraph Core AI
        ToolEnabledAI[ToolEnabledAI]
        AIBase[AIBase]
        ProviderFactory[ProviderFactory]
        ProviderImplementations[Provider Implementations]
        ConversationManager[ConversationManager]
        PromptTemplateSvc[PromptTemplate Service]

        ToolEnabledAI -- Inherits --> AIBase
        AIBase --> ProviderFactory
        AIBase --> ConversationManager
        AIBase --> PromptTemplateSvc
        ProviderFactory --> ProviderImplementations
    end

    subgraph Dependencies
       UnifiedConfig[UnifiedConfig Singleton]
       ToolManager[ToolManager]
       LoggerFactory[LoggerFactory Singleton]
    end

    ToolEnabledAI --> UnifiedConfig
    ToolEnabledAI --> ToolManager
    ToolEnabledAI --> LoggerFactory
    AIBase --> UnifiedConfig
    AIBase --> LoggerFactory
    ProviderImplementations --> UnifiedConfig
    PromptTemplateSvc --> LoggerFactory
    BaseProvider --> ProviderToolHandler
    BaseProvider --> UnifiedConfig
    BaseProvider --> LoggerFactory

Flow Note: ToolEnabledAI passes internal tool names to BaseProvider. BaseProvider uses its ProviderToolHandler (which uses ToolRegistry) to format these names into the provider-specific API structure.

3. Tool Subsystem

graph TD
    subgraph "Users Of Tools"
        ToolEnabledAI -- "Calls Execute (await)" --> ToolManager
        BaseAgent -- "Calls Execute (await)" --> ToolManager
    end

    subgraph "Tools Subsystem"
        ToolManager -- "Gets All Definitions" --> ToolRegistry["ToolRegistry (Internal Tools)"]
        ToolManager -- "Gets All Definitions" --> MCPClientManager["MCPClientManager (MCP Tools)"]

        ToolManager -- "Dispatches" --> ToolExecutor["ToolExecutor (Internal)"]
        ToolManager -- "Dispatches" --> MCPClientManager

        ToolManager -- "Records Stats" --> ToolStatsManager

        ToolExecutor -- "Returns (awaitable)" --> ToolResult["ToolResult Model"]
        MCPClientManager -- "Returns MCP Response" --> ToolManager

        ToolRegistry -- "Stores/Provides" --> InternalToolDef["ToolDefinition (source='internal')"]
        MCPClientManager -- "Stores/Provides" --> MCPToolDef["ToolDefinition (source='mcp')"]

        ToolStatsManager -- "Persists" --> StatsFile["Tool Stats JSON"]

        UnifiedConfigRef["UnifiedConfig"] -- "Provides Config" --> ToolRegistry
        UnifiedConfigRef["UnifiedConfig"] -- "Provides Config" --> MCPClientManager
        UnifiedConfigRef["UnifiedConfig"] -- "Provides Config" --> ToolExecutor
        UnifiedConfigRef["UnifiedConfig"] -- "Provides Config" --> ToolStatsManager

        ToolsYAML["tools.yml"] -- "Read By" --> UnifiedConfigRef
        MCPYAML["mcp.yml"] -- "Read By" --> UnifiedConfigRef
    end

    subgraph "Dependencies"
       ToolManager -- "Uses" --> LoggerFactory["LoggerFactory"]
       ToolRegistry -- "Uses" --> LoggerFactory
       MCPClientManager -- "Uses" --> LoggerFactory
       ToolExecutor -- "Uses" --> LoggerFactory
       ToolStatsManager -- "Uses" --> LoggerFactory
       ToolManager -- "Uses" --> UnifiedConfigRef
    end

    ToolEnabledAI -- "Gets Formatted Tools" --> ToolManager

    style ToolManager fill:#f9f,stroke:#333,stroke-width:2px
    style ToolExecutor fill:#fdf,stroke:#333,stroke-width:1px
    style MCPClientManager fill:#fdf,stroke:#333,stroke-width:1px
    style ToolEnabledAI fill:#ccf,stroke:#333,stroke-width:2px

4. Agent System

graph TD
    subgraph "Agents"
        Coordinator["Coordinator"]
        AgentFactory["AgentFactory"]
        AgentRegistry["AgentRegistry"]
        BaseAgent["BaseAgent"]
        ListenerAgent["ListenerAgent"]
        ChatAgent["ChatAgent"]
        ToolFinderAgent["ToolFinderAgent"]
        OtherAgents["..."]
        RequestAnalyzer["Request Analyzer"]

        Coordinator -- "Inherits" --> BaseAgent
        ListenerAgent -- "Inherits" --> BaseAgent
        ChatAgent -- "Inherits" --> BaseAgent
        ToolFinderAgent -- "Inherits" --> BaseAgent
        OtherAgents -- "Inherits" --> BaseAgent

        Coordinator -- "Uses" --> AgentFactory
        Coordinator -- "Uses" --> RequestAnalyzer
        Coordinator -- "Uses" --> FrameworkMessageFormatter
        Coordinator -- "Calls (Direct Dispatch)" --> ToolManagerRef["ToolManager"]
        AgentFactory -- "Uses" --> AgentRegistry
        AgentFactory -- "Creates" --> BaseAgent
        RequestAnalyzer -- "Uses" --> AgentRegistry
    end

    subgraph "Dependencies"
       UnifiedConfig["UnifiedConfig Singleton"]
       ToolManagerRef
       LoggerFactory["LoggerFactory Singleton"]
       AIBase["AIBase"]
    end

    BaseAgent --> UnifiedConfig
    BaseAgent --> ToolManagerRef
    BaseAgent --> LoggerFactory
    BaseAgent --> AIBase
    Coordinator -- "Coordinator might directly use" --> ToolManagerRef

5. High-Level Interactions

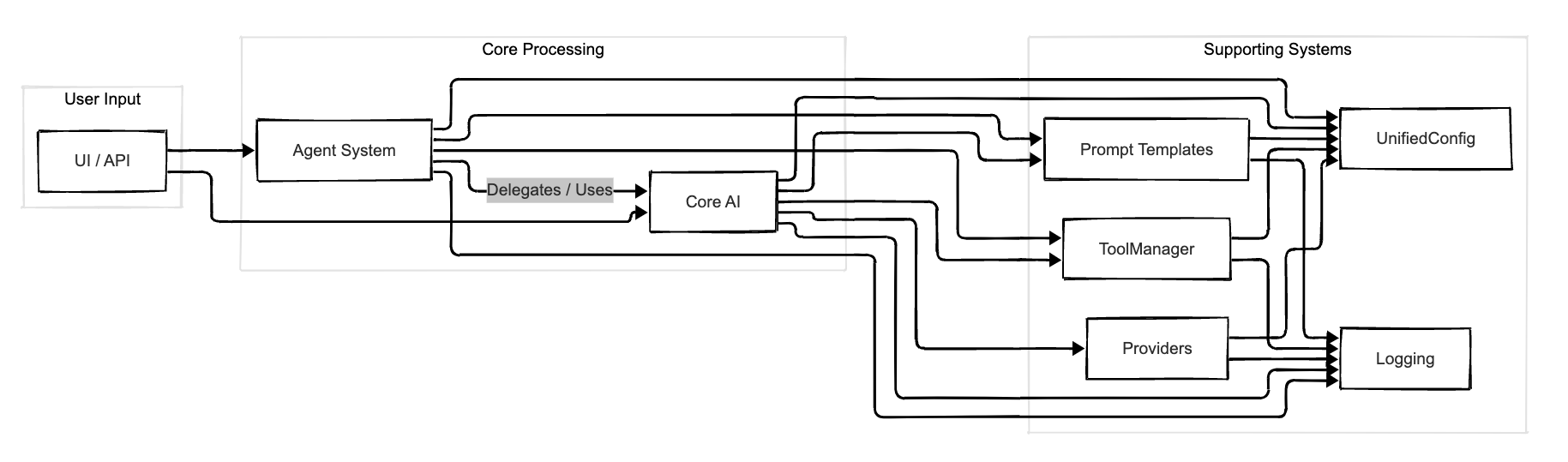

High Level

graph LR
    subgraph User Input
        UI[UI / API]
    end

    subgraph Core Processing
        Coordinator[Agent System (Coordinator)]
        ToolEnabledAI[Core AI (ToolEnabledAI)]
    end

    subgraph Supporting Systems
        Config[Configuration (UnifiedConfig)]
        Tools[Tool Subsystem (ToolManager)]
        Prompts[Prompt Templates]
        Logging[Logging]
        Providers[Providers]
    end

    UI --> Coordinator
    UI --> ToolEnabledAI # Direct AI calls possible

    Coordinator -- Delegates / Uses --> ToolEnabledAI
    Coordinator --> Tools
    ToolEnabledAI --> Tools
    ToolEnabledAI --> Providers

    Coordinator --> Config
    ToolEnabledAI --> Config
    Tools --> Config
    Providers --> Config
    Prompts --> Config

    Coordinator --> Prompts
    ToolEnabledAI --> Prompts

    Coordinator --> Logging
    ToolEnabledAI --> Logging
    Tools --> Logging
    Providers --> Logging

(Note: These diagrams illustrate major dependencies and interactions. Not all minor connections are shown for clarity.)

Key Architectural Improvements

  • Unified Configuration: Replaced disparate config managers with a single UnifiedConfig singleton accessing modular YAML files, simplifying configuration access.
  • Standardized Provider Interface: BaseProvider and ProviderInterface enforce a standard structure for provider implementations, returning a standardized ProviderResponse object to simplify core AI logic.
  • Refined Agent System: Centralized orchestration logic in the Coordinator agent, supported by AgentFactory, AgentRegistry, and RequestAnalyzer, providing a clearer structure than earlier multi-agent concepts.
  • Focused Tool Subsystem: ToolManager, ToolRegistry, ToolExecutor, and ToolStatsManager provide clear responsibilities for tool definition, formatting, execution, and usage statistics tracking, integrated seamlessly with ToolEnabledAI.
  • Simplified Core AI: AIBase handles fundamental LLM interaction, while ToolEnabledAI specifically layers tool-calling orchestration on top.
  • YAML-based Prompt Templates: Standardized on the PromptTemplate service loading versioned templates from YAML files as the primary prompt management method.
  • Consistent Error Handling: Implemented a clear exception hierarchy and ErrorHandler for uniform error management.

Usage Example

from src.core import ToolEnabledAI
from src.agents import Coordinator
from src.config import configure, UseCasePreset
from src.tools import ToolDefinition, ToolManager # Assuming definition exists

# --- Configuration (Optional) ---
# Configure framework settings if defaults aren't suitable
# configure(model="gpt-4o", use_case=UseCasePreset.CODING)

# --- Direct AI Usage with Tools ---
print("\n--- Using ToolEnabledAI Directly ---")
# Create a ToolEnabledAI instance (uses configured model)
ai = ToolEnabledAI()

# Tools are typically loaded via configuration (tools.yml)
# If manual registration is needed (less common):
# tool_manager = ToolManager() # Get or create manager
# weather_tool_def = ToolDefinition(...) # Define get_weather
# tool_manager.register_tool("get_weather", weather_tool_def)
# ai = ToolEnabledAI(tool_manager=tool_manager)

# Make a request - process_prompt handles the tool loop
response_ai = ai.process_prompt("What is the weather like in London?")
print(f"AI Response: {response_ai}")

# --- Agent-Based Usage via Coordinator ---
print("\n--- Using Coordinator Agent ---")
# Create a Coordinator instance (uses default dependencies & config)
coordinator = Coordinator()

# Prepare a request for the coordinator
request_data = {
    "prompt": "Summarize the main points of the latest Agentic AI documentation updates.",
    # Add other relevant info like user_id, session_id if needed by agents
}

# Process the request through the coordinator
response_coord = coordinator.process_request(request_data)

# Print the final content from the coordinator's response
print(f"Coordinator Response: {response_coord.get('content')}")
